U-Flow Conveyor

U-Flow Conveyor

Efficient solution for returning products to the operator



Double efficiency and save time with the CSR return conveyor. The products that have already been processed are easily returned to the operator at the input side of the machine and can be finished on the other side when desired or stacked.



U-Flow Conveyor
U-Flow Conveyor
U-Flow Conveyor

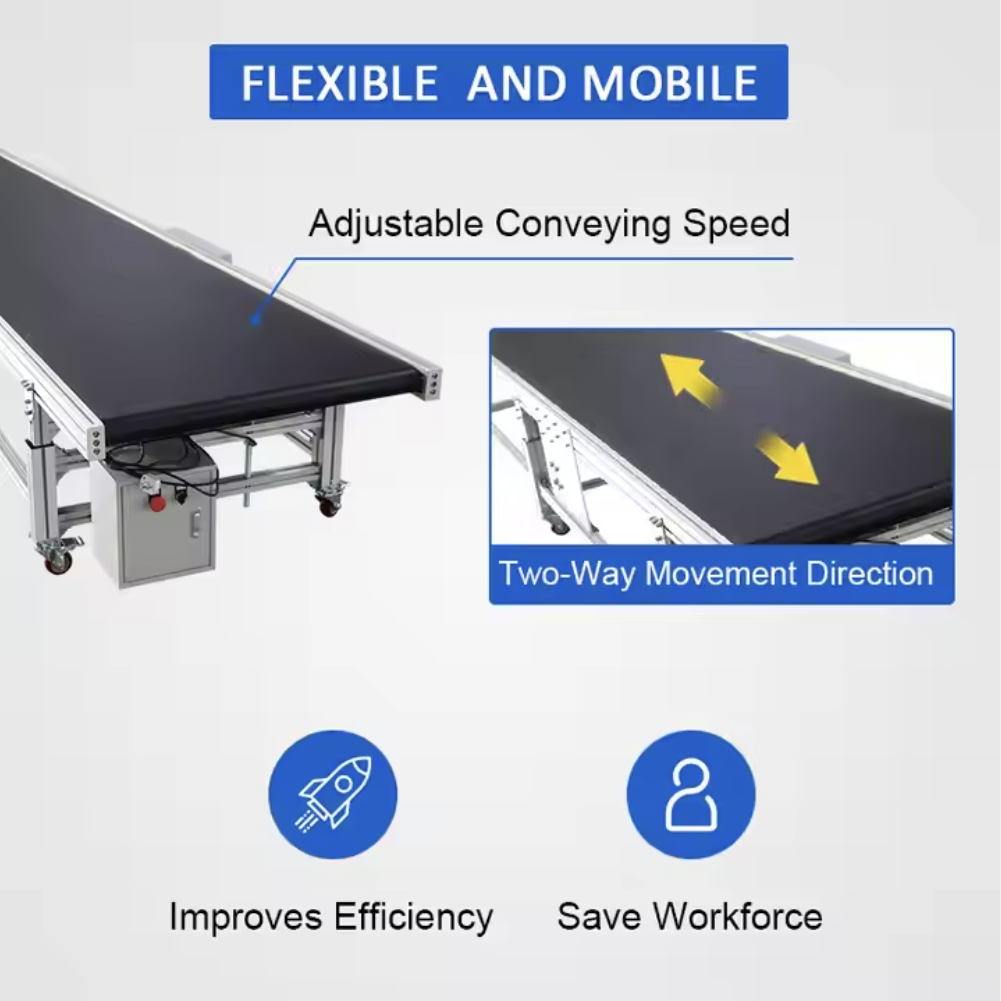

  • Available for all Evotec finishing machines
  • Doubling efficiency
  • Saving labour cost
  • Minimal effort for the operator
  • Suitable for variety of products
  • Solid, mobile construction
  • Stepless adjustable speed
Edge rounding
Edge rounding
Deslagging
Deslagging
Micro joints
Micro joints
Edge bevelling
Edge bevelling
Line grain
Line grain
Roughness
Roughness

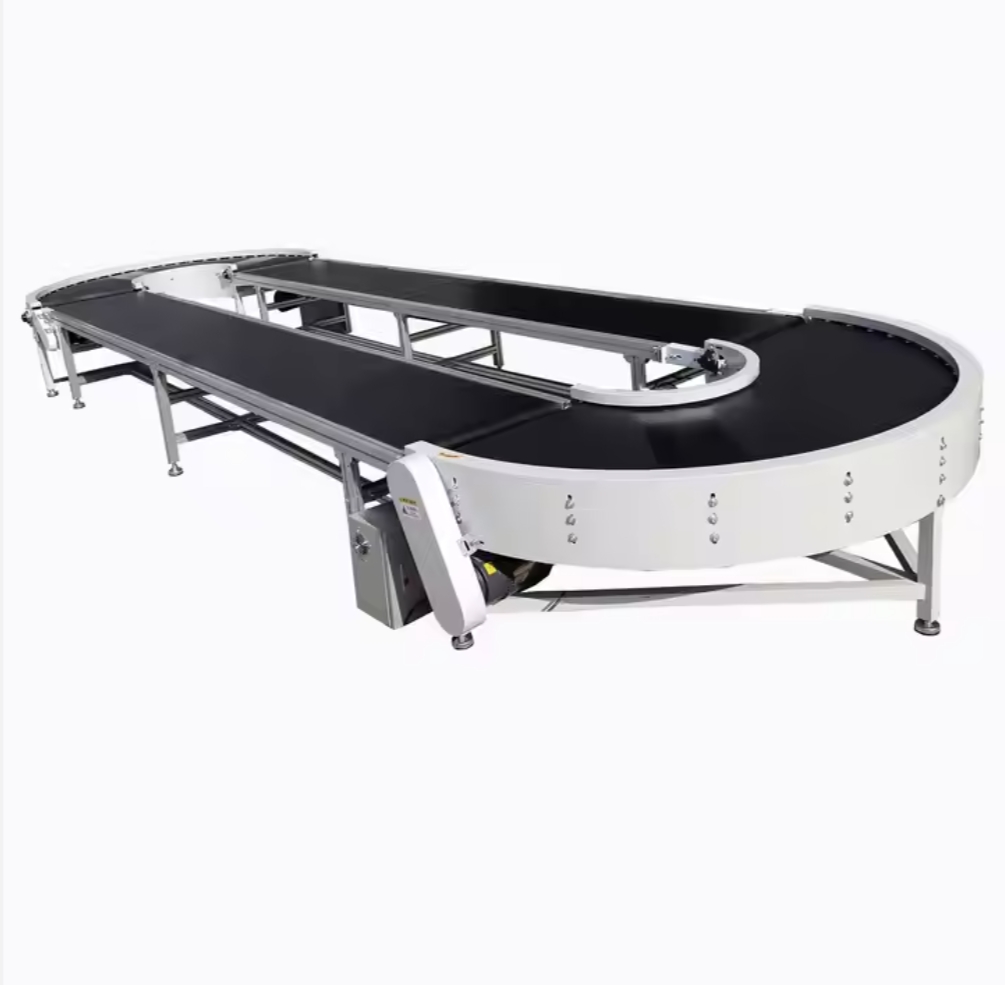

The Evotec U-Flow Conveyor return conveyor belts improve workflow and create an efficient solution for handling sheet metal parts without the need for an additional operator. The use of a return conveyor on a Evotec deburring and finishing machine means that products already finished on one side are returned to the operator on the infeed side of the machine. If desired, the operator can put the products through the machine again to finish the second side of the product as well. Or he can stack the products so that they can proceed to the next production step.

U-Flow
Conveyor belt speed 0.3 - 8 m/min
Maximum conveyor belt load 300 kg/m
Minimum product dimensions 120 x 120 mm
Maximum product dimensions Depends on table and product geometry
Machine power supply 230 V | 50 Hz
Dimensions (L x W x H) Machine dependent x 1131 x 881 mm
Weight Machine dependent
Suitable for All series Evotec Machine

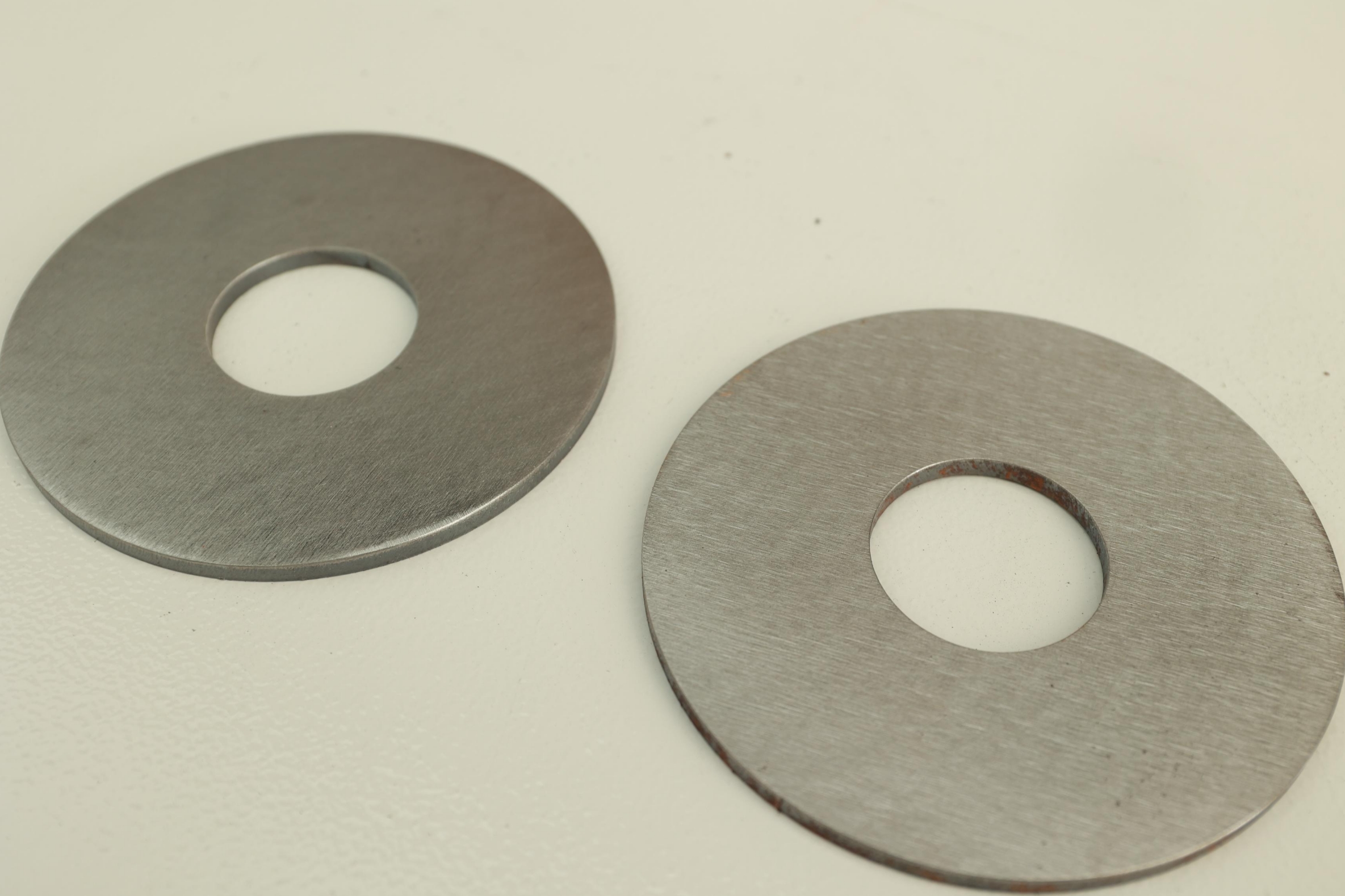

Samples
  • U-Flow Conveyor
  • U-Flow Conveyor
  • U-Flow Conveyor
  • U-Flow Conveyor
