EdgeMaster SRS

EdgeMaster SRS-Deburring and consistent texture solution

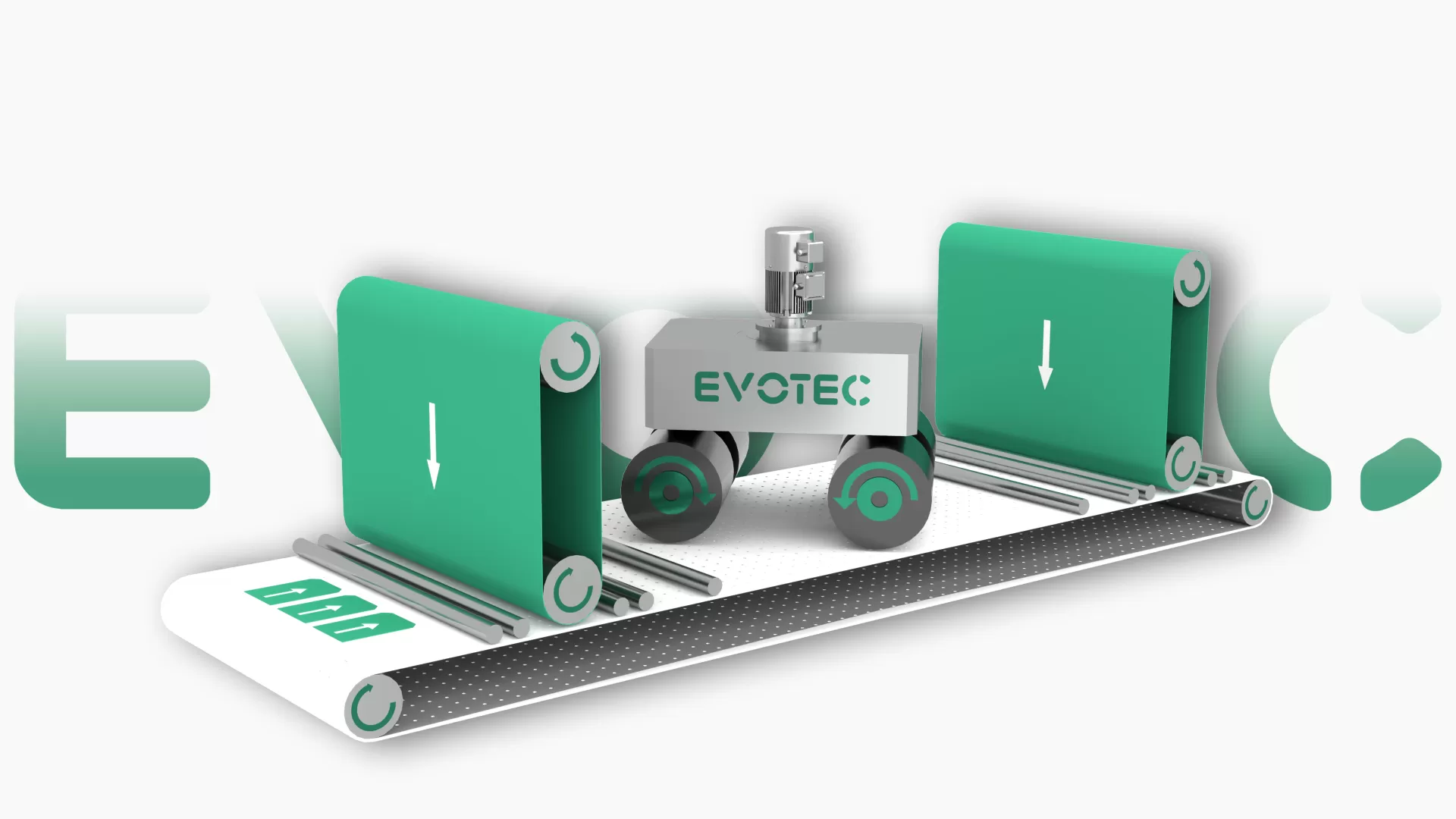

Achieve superior edge rounding and finishing with the EdgeMaster SRS, a dual-belt machine engineered for precision and consistency. The second belt ensures a uniform directional grain finish, giving your components a professional, polished appearance. The EdgeMaster SRS combines robust performance with user-friendly operation, making it an ideal choice for manufacturers who require both precise edge rounding and consistent surface finishes. Compact yet powerful, the EdgeMaster SRS delivers high-quality results with every pass.



Workstation Display





EdgeMaster  SRS
EdgeMaster  SRS
EdgeMaster  SRS

Complete machine with unique brush combination

Fully automatic adjustable stations

Combination of operations programmable

Intuitive, multilingual HMI touchscreen

Reproducible finish quality with adjustable programs

Automatic brush calibration and height adjustment of grinding unit

Deburring and consistent texture solution

Deburring
Deburring
Oxide layer
Oxide layer
Edge rounding
Edge rounding
Edge bevelling
Edge bevelling
Micro joints
Micro joints
Finishing
Finishing
Roughness
Roughness
PARAMETERS EdgeMaster 800 EdgeMaster 1000 EdgeMaster 1300 EdgeMaster 1600
SRS 800 1000 1300 1600
Conveyor belt speed 0.5 - 7 m/min 0.5 - 7 m/min 0.5 - 7m/min 0.5 - 7m/min
Production fixation Vacuum or magnet system Vacuum or magnet system Vacuum or magnet system Vacuum or magnet system
Minimum workpiece dimensions ≥50 x 50 mm ≥50 x 50 mm ≥50 x 50 mm ≥50 x 50 mm
Maximum workpiece width 800MM 1000MM 1300MM 1600MM
Maximum workpiece height 0.5-100MM 0.5-100MM 0.5-100MM 0.5-100MM
Belt size 1900*820mm 2200*1020mm 2200*1320mm 2200*1320mm
Roller brush size 300*300*40(4/set) 300*300*40(6/set) 300*400*40(8/set) 300*400*40(8/set)
Workbench load-bearing ≤   300kg ≤ 500kg ≤ 700kg ≤  700 kg
Machine power supply 400 V | 50 Hz |120 A |  39 kW 400 V | 50 Hz | 150A | 50 kW 400 V | 50 Hz |240A |79kW 400 V | 50 Hz |270A |  88 kW
Dimensions (L x W x H) 3300x 1650*2250mm 3700x 1850*2250mm 4200x 2250*2300mm 4200*2250*2300mm
Weight 3000 kg 3500 kg 5700kg 6500 kg
