EdgeMaster SRP- Integrated deburring, chamfering and wire drawing combination
Elevate your finishing process with the EdgeMaster SRP, a single-belt machine designed to deliver both precise edge rounding and a flawless polished finish. This versatile machine is ideal for manufacturers looking to achieve smooth, rounded edges and a final high-gloss surface on small to medium-sized parts. The EdgeMaster SRP combines edge rounding and polishing in one compact unit, ensuring your components not only meet functional requirements but also shine with a professional, polished appearance. Efficient and easy to use, the EdgeMaster SRP offers a comprehensive solution for superior surface finishing.

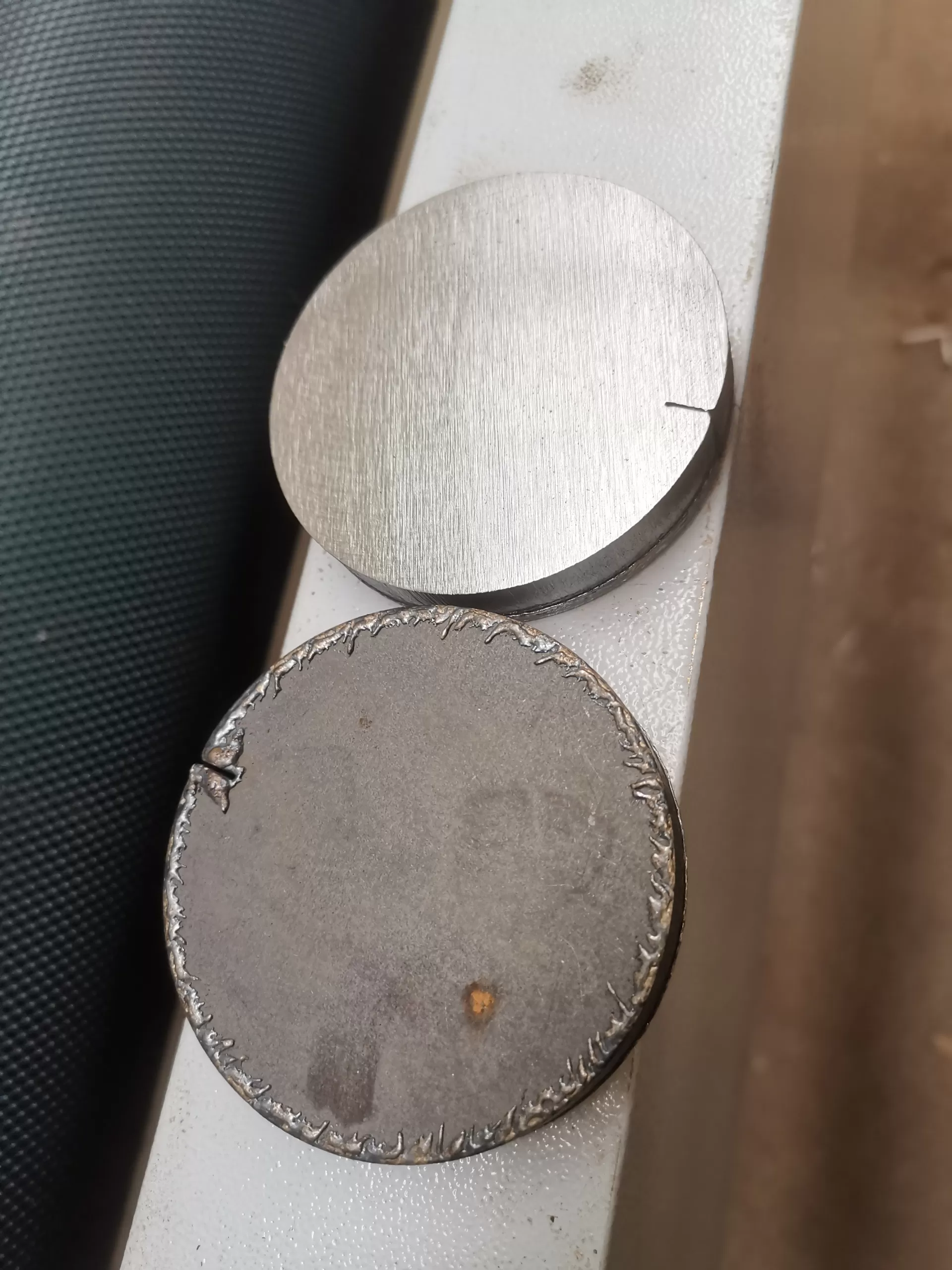

Workstation Display
Complete machine with unique brush combination
Fully automatic adjustable stations
Combination of operations programmable
Intuitive, multilingual HMI touchscreen
Reproducible finish quality with adjustable programs
Automatic brush calibration and height adjustment of grinding unit
One-stop deburring, chamfering and wire drawing consistency
PARAMETERS | EdgeMaster 800 | EdgeMaster 1000 | EdgeMaster 1300 | EdgeMaster 1600 |
---|---|---|---|---|
SRP | 800 | 1000 | 1300 | 1600 |
Conveyor belt speed | 0.5 - 7 m/min | 0.5 - 7 m/min | 0.5 - 7m/min | 0.5 - 7m/min |
Production fixation | Vacuum or magnet system | Vacuum or magnet system | Vacuum or magnet system | Vacuum or magnet system |
Minimum workpiece dimensions | ≥50 x 50 mm | ≥50 x 50 mm | ≥50 x 50 mm | ≥50 x 50 mm |
Maximum workpiece width | 800MM | 1000MM | 1300MM | 1600MM |
Maximum workpiece height | 0.5-100MM | 0.5-100MM | 0.5-100MM | 0.5-100MM |
Belt size | 1900*820mm | 2200*1020mm | 2200*1320mm | 2200*1320mm |
Roller brush size | 300*300*40(4/set) | 300*300*40(6/set) | 300*400*40(8/set) | 300*400*40(8/set) |
Workbench load-bearing | ≤ 300kg | ≤ 500kg | ≤ 700kg | ≤ 700 kg |
Machine power supply | 400 V | 50 Hz | 100A | 34 kW | 400 V | 50 Hz |140A |44kW | 400 V | 50 Hz | 210 A |70 W | 400 V | 50 Hz |220A |74 kW |
Dimensions (L x W x H) | 3300x 1650*2250mm | 3700x 1850*2250mm | 4200x 2250*2300mm | 4200*2250*2300mm |
Weight | 3000 kg | 3500 kg | 5700kg | 6500 kg |
