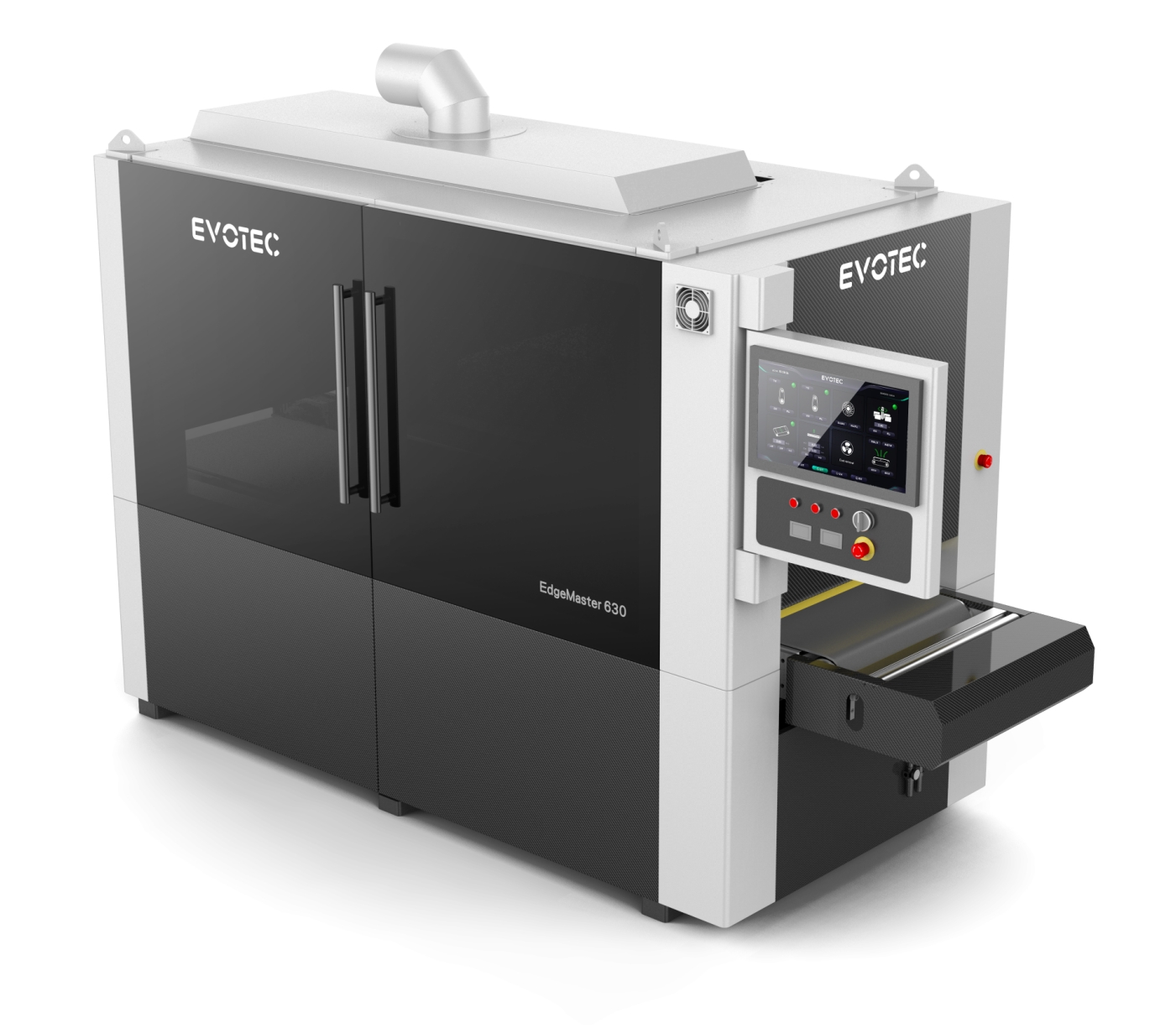

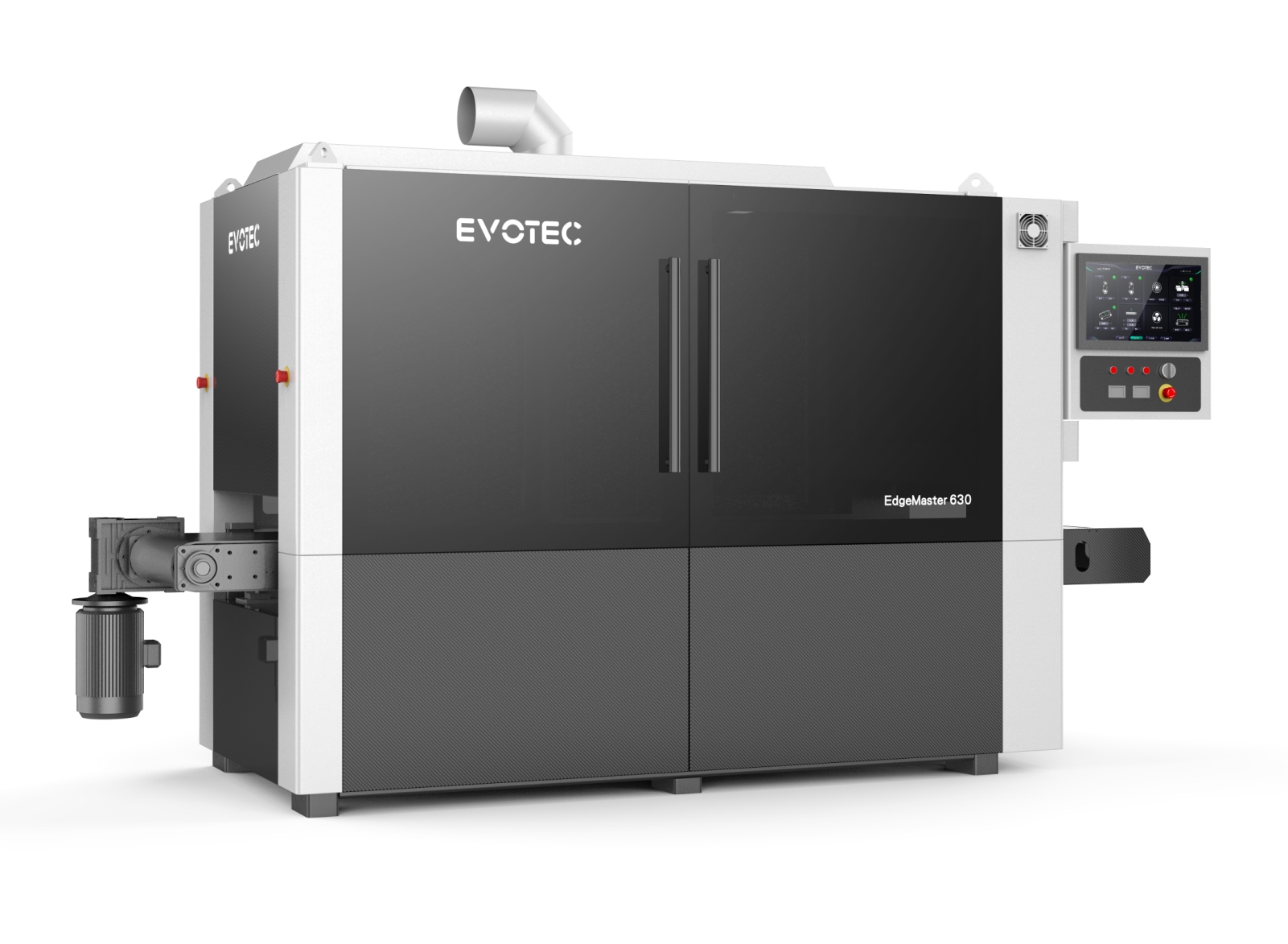

EdgeMaster SR – Wide Belt Machine for Perfect Non-Directional Finishes
The EdgeMaster SR delivers fast, high-quality non-directional finishes with consistency. Designed for sheet metal parts up to 1600 mm wide, it offers an efficient solution for deburring, edge rounding, and non-directional finishing in one seamless process.
Workstation Display
Unique multibrush system, stable grinding belt
Ideal for foil-covered sheet metal parts
Fully automatic adjustable stations
Intuitive, multilingual HMI touchscreen
Reproduce with adjustable programs
Automatic brush calibration
| PARAMETERS | EdgeMaster 800 | EdgeMaster 1000 | EdgeMaster 1300 | EdgeMaster 1600 |
|---|---|---|---|---|
| SR | 800 | 1000 | 1300 | 1600 |
| Conveyor belt speed | 0.5 - 7 m/min | 0.5 - 7 m/min | 0.5 - 7m/min | 0.5 - 7m/min |
| Production fixation | Vacuum or magnet system | Vacuum or magnet system | Vacuum or magnet system | Vacuum or magnet system |
| Minimum workpiece dimensions | ≥50 x 50 mm | ≥50 x 50 mm | ≥50 x 50 mm | ≥50 x 50 mm |
| Maximum workpiece width | 800MM | 1000MM | 1300MM | 1600MM |
| Maximum workpiece height | 0.5-100MM | 0.5-100MM | 0.5-100MM | 0.5-100MM |
| Belt size | 1900*820mm | 2200*1020mm | 2200*1320mm | 2200*1320mm |
| Roller brush size | 300*300*40(4/set) | 300*300*40(6/set) | 300*400*40（8/set） | 300*400*40（8/set） |
| Workbench load-bearing | ≤ 300kg | ≤ 500kg | ≤ 700kg | ≤ 700 kg |
| Machine power supply | 400 V | 50 Hz |100A |32kW | 400 V | 50 Hz |120 A |38 kW | 400 V | 50 Hz |180A | 60kW | 400 V | 50 Hz | 200 A |65kW |
| Dimensions (L x W x H) | 2900x 1650*2250mm | 3200x 1850*2250mm | 3700x 2250*2300mm | 3700*2250*2300mm |
| Weight | 2600 kg | 3000 kg | 4500 kg | 5500 kg |
