EdgeMaster PRO

The ultimate all-in-one finishing machine



Take your production process to the highest level with the SRP PRO EdgeMaster. The complete solution for deburring, edge rounding with Radius 2+, non-directional, or linear finish at very high speed for sheet metal parts up to 1600 mm wide.



Workstation Display





EdgeMaster  PRO
EdgeMaster  PRO
EdgeMaster  PRO

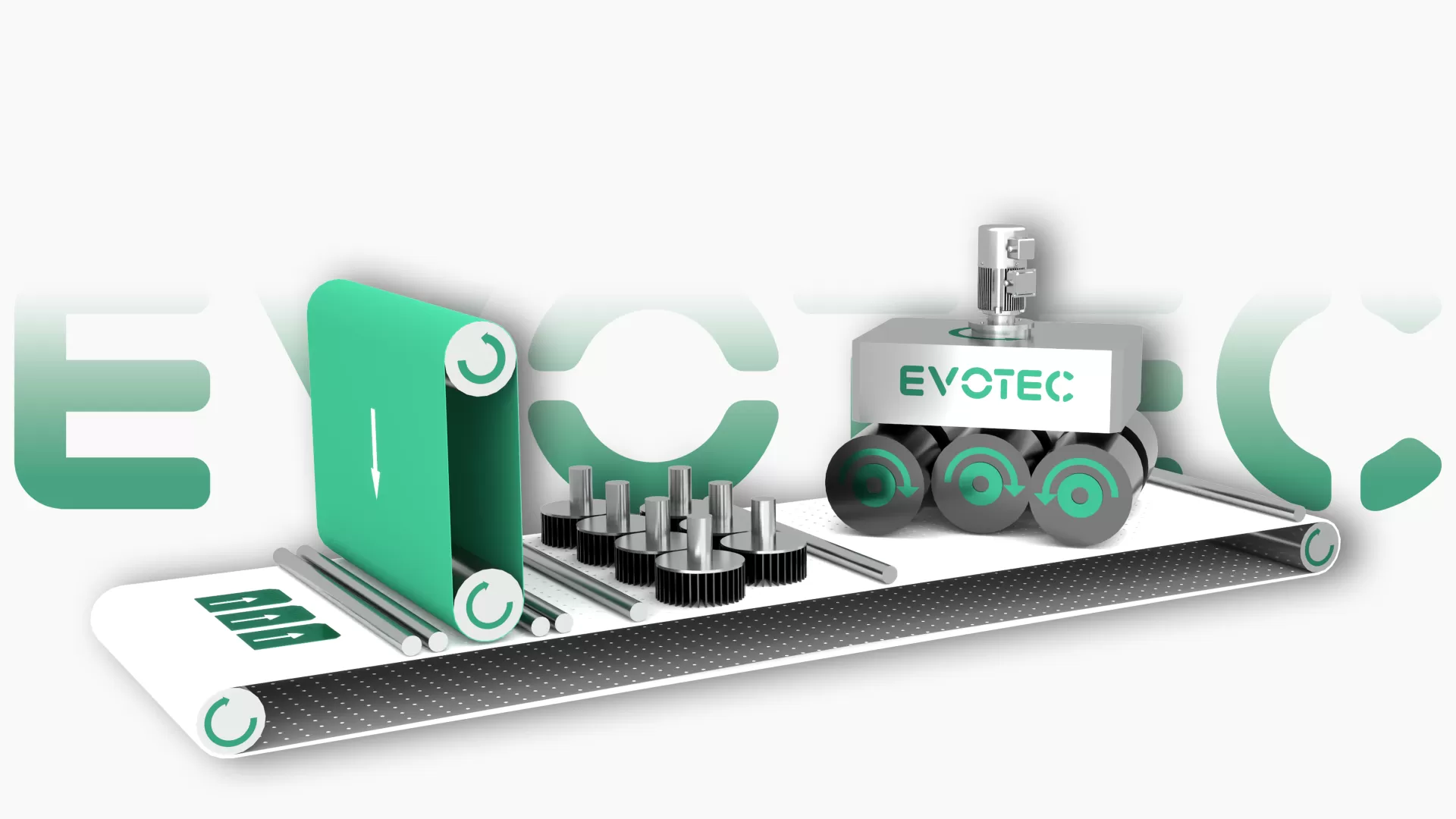

Complete machine with unique brush combination

Fully automatic adjustable stations

Combination of operations programmable

Intuitive, multilingual HMI touchscreen

Parameter storage, Reproducible finish quality

Automatic height compensation

Active conveyor belt cleaning

High temperature resistant conveyor belt technology

3.2s emergency braking technology

Deburring
Deburring
Edge rounding
Edge rounding
Grinding
Grinding
Deslagging
Deslagging
Oxide layer
Oxide layer
Micro joints
Micro joints
Radius 2+
Radius 2+
PARAMETERS EdgeMaster 800 PRO EdgeMaster 1000 PRO EdgeMaster 1300 PRO EdgeMaster 1600 PRO
SRP 800 1000 1300 1600
Automatic height compensation Standard
Parameter preservation Standard
Conveyor belt speed 0.5 - 7 m/min 0.5 - 7 m/min 0.5 - 7m/min 0.5 - 7m/min
Production fixation Vacuum or magnet system Vacuum or magnet system Vacuum or magnet system Vacuum or magnet system
Minimum workpiece dimensions ≥50 x 50 mm ≥50 x 50 mm ≥50 x 50 mm ≥50 x 50 mm
Maximum workpiece width 800MM 1000MM 1300MM 1600MM
Maximum workpiece height 0.5-100MM 0.5-100MM 0.5-100MM 0.5-100MM
Belt size 1900*820mm 2200*1020mm 2200*1320mm 2200*1320mm
Roller brush size 300*300*40(4/set) 300*300*40(6/set) 300*400*40(8/set) 300*400*40(8/set)
Workbench load-bearing ≤   300kg ≤ 500kg ≤ 700kg ≤  700 kg
Machine power supply 400 V | 50 Hz | 100A | 34 kW 400 V | 50 Hz |140A |44kW 400 V | 50 Hz | 210 A |70 W 400 V | 50 Hz |220A |74 kW
Dimensions (L x W x H) 3300x 1650*2250mm 3700x 1850*2250mm 4200x 2250*2300mm 4200*2250*2300mm
Weight 3000 kg 3500 kg 5700kg 6500 kg



Samples
  • EdgeMaster  PRO
  • EdgeMaster  PRO
  • EdgeMaster  PRO
  • EdgeMaster  PRO
  • EdgeMaster  PRO
  • EdgeMaster  PRO
